Column Inline Filter, for HPLC columns, replaceable filters and All-PEEK holder. Includes 25 disposable 2 um Ti filters. ARE-Applied Research brand. 10/PK.
Additional Info:
The 49680‑02S‑010 Inline Column Filter System is a high‑value, reusable column‑protection solution designed for laboratories running multiple HPLC systems or high sample throughput. Each system consists of a durable all‑PEEK inline holder paired with replaceable PEEK‑encased titanium filter discs, providing dependable particulate control while significantly reducing ongoing consumable cost.
This configuration supports typical analytical HPLC operating conditions, with compatibility up to 4,500 psi and 5 mL/min flow rates. It is not recommended for UHPLC pressure regimes. The supplied 2.0 µm titanium filters deliver effective particulate removal with minimal added backpressure, making them suitable for routine methods and cleaner sample matrices.

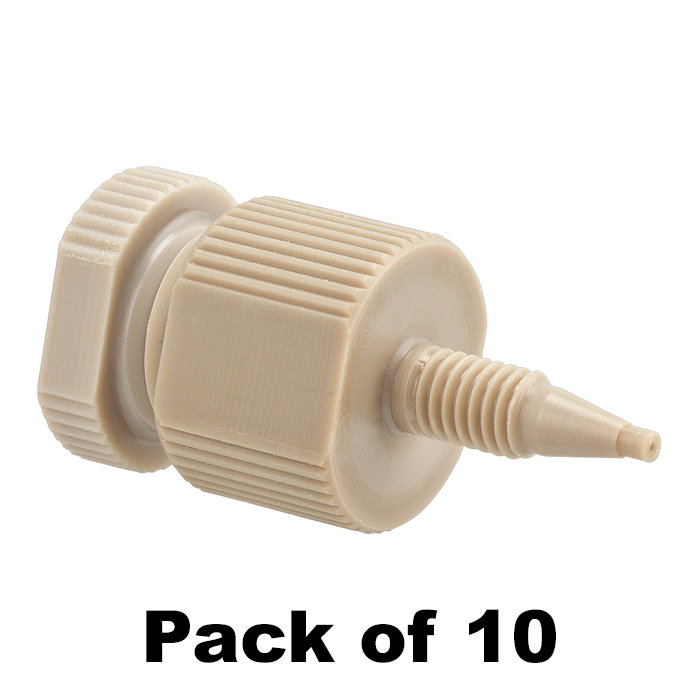

The 10‑pack system option is ideal for laboratories seeking bulk availability, reduced downtime, and simplified inventory management while maintaining consistent system performance.
Key Features

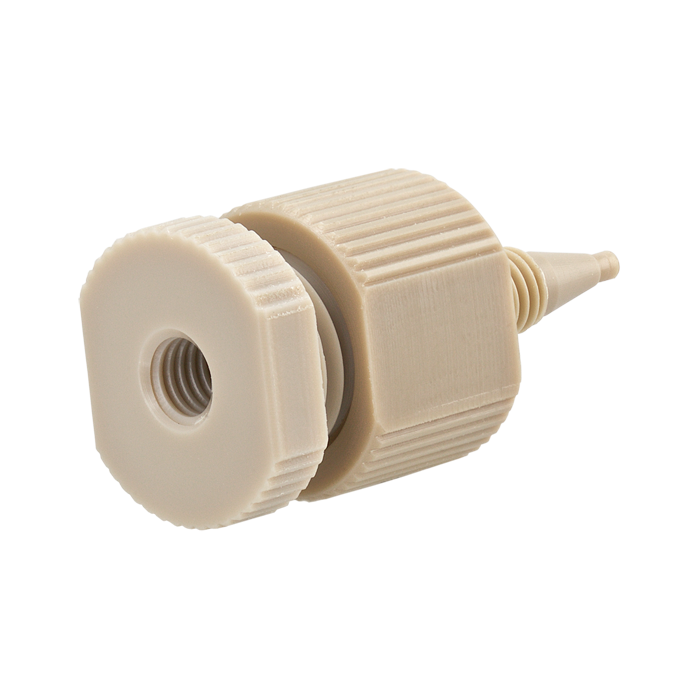

Reusable All‑PEEK Inline Filter Holder
Long‑life, chemically inert PEEK holder
Eliminates repeated replacement of full filter housings
Designed for repeated use in routine HPLC workflows
Replaceable 2.0 µm Titanium Filter Discs
Supplied with 25 disposable filters per system
PEEK‑encased titanium construction
Balanced particulate retention with low flow restriction
Bio‑Inert Flow Path
PEEK and titanium materials only
Compatible with sensitive analytes and bioanalytical methods
Avoids corrosion and metal interaction issues
Universal HPLC Compatibility
Fits all standard HPLC column threads and pilot lengths
Can be hand‑tightened or wrench‑tightened
Easily installs into existing systems
Instrument & Column Protection
Installed after the pump, before the injector
Protects injectors, column frits, and packed beds
Extends column lifetime and improves method robustness
Usage & Replacement Guidance
Monitor system backpressure during operation. A gradual pressure rise indicates filter loading.

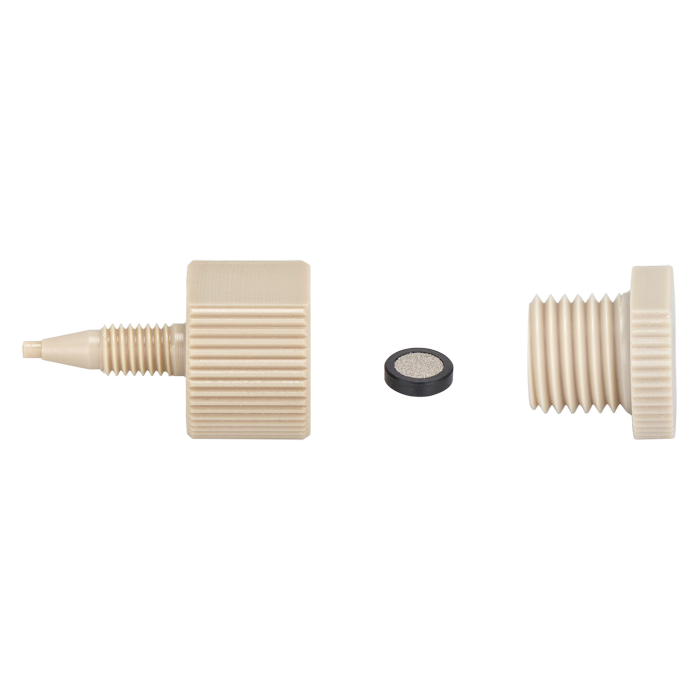

To replace the filter disc:
Reduce system pressure to atmospheric
Disconnect the inline filter holder
Remove and discard the used filter disc
Insert a new disc and reconnect
The holder accepts any PEEK‑encased filter disc measuring ¼ inch OD × 1⁄16 inch thick, allowing flexibility in porosity selection if method requirements change.
Pressure Rating & Compatibility
Maximum pressure: 4,500 psi
Maximum recommended flow: 5 mL/min
Compatible with: Analytical HPLC systems
Not recommended for: UHPLC pressure ranges
Bulk pricing options are available for laboratories operating multiple systems.
Typical Applications
Routine analytical HPLC
Injector and column protection
Method development and validation
High‑throughput laboratories
Cost‑controlled chromatography workflows
